TIMESERT ® PROFESSIONAL Oil Pan thread repairDRAIN PLUG THREAD REPAIR KITS

THE VERY BEST IN STRIPPED SPARK PLUG THREAD REPAIR KITS !

NOTE: If the hole was previously REPAIRED with Helicoil or save-a-thread style insert.
Use our BIG-SERT for oversized spark plug repairs click here:

These kits are considered "Over the fender" you DO NOT have to remove the head. MEASURING INSERT LENGTH:
To measure correctly for the length of insert you need for your application. Measure from under the spark plug (Washer) or (middle of taper for tapered seat) to the last thread.
(Not to the end of the electrode). This will give you the correct length. TIME-SERT inserts cannot be shortened.
(click here: for Spark plug measurement and determine correct size and length insert)
SPARK PLUG THREAD REPAIR KIT

thread repair kit
p/n 4412	p/n 4412E

SPARK PLUG TYPES		WASHER SEAT SPARK PLUG INSERTS copper plated			TAPER SEAT SPARK PLUG INSERTS silver plated
Video instructions		LENGTH		Washer seat PART NO.	LENGTH		Taper seat PART NO.
KIT SIZE	Part No.	INCH	METRIC		INCH	METRIC
1/4-32 RC engines Glow plug	Kit p/n 0142SP note: includes 5 inserts	.180	04.57mm	01421	-----	-----	-----
KIT SIZE	Part No.	INCH	METRIC	Washer seat PART NO.	INCHES	METRIC	Taper seat PART NO.
M10x1.0 RC Plane 1/4 Reach SHORT Spark plug	Kit p/n 1010A includes 5 inserts 6.2mm length	.360 .472 .600 .905	09.0 mm 12.0 mm 15.0 mm 23.0mm	40101 40102 40103 40105	----- ----- -----	----- ----- -----	----- ----- -----
M10x1.0 Standard (notes)	Kit p/n 4010 note: Inserts NOT included
M10x1.0 Deep hole kit :Honda Note:	Kit p/n 4010E note: Inserts NOT included
KIT SIZE	Part No.	INCH	METRIC	Insert PART NO.	INCHES	METRIC	Taper seat PART NO.
M10x1.0 Glow plug commonly used in dodge sprinter (notes)	Kit p/n 4010GP note: includes 5 inserts	.472	12.0 mm	40102	-----	-----	-----
KIT SIZE	Part No.	INCHES	METRIC	Insert PART NO.	INCHES	METRIC	Taper seat PART NO.
M10x1.25 Glow Pug DuraMax 6.6L Diesel 2001-2010 (link)	Kit p/n 5000 note: includes 5 inserts	.650	16.2 mm	10123ANF aluminum	-----	-----	-----
KIT SIZE	Part No.	INCH	METRIC	Washer seat PART NO.	INCHES	METRIC	Taper seat PART NO.
M12x1.25 Standard (notes)	Kit p/n 4212 note: Inserts NOT included	.360 .600 .690 .866	09.0 mm 15.0 mm 17.5 mm 22.0mm	42121 42123 42125 42127	.827	21.0 mm	42126 Note click here: Ford Insert
M12x1.25 Deep hole (notes)	Kit p/n 4212E note: Inserts NOT included
M12x1.25 2008 Ford 3 valve kit (notes)	Kit p/n 4212H note: includes 5 inserts
KIT SIZE	Part No.	INCH	METRIC	Washer seat PART NO.	INCHES	METRIC	Taper seat PART NO.
M14x1.25 Short kit for 8mm length (notes)	Kit p/n 14125F note: includes 5 inserts	.270 .320 .370 .430 .530 .600 .660 .905	07.0 mm 08.0 mm 09.4 mm 11.0 mm 13.5 mm 15.0 mm 16.8 mm 23.0 mm	44121 44123 44125 44127 44113 44129 44111 44112	.270 .400 .620 .660 .950	07.0 mm 10.0 mm 15.7 mm 16.8 mm 24.0 mm	44181 44183 44185 44186 44187
M14x1.25 STANDARD (notes)	Kit p/n 4412 note: Inserts NOT included
M14x1.25 DEEP HOLE (notes)	Kit p/n 4412E note: Inserts NOT included				Sealer required! for all taper seat inserts p/n 6020
M14x1.25 Extended tooling with assorted length inserts. (notes)	Kit p/n 4490	Assorted length inserts are included in kit p/n 4490. This kit includes exteneded length tooling and a mini wrench which can help with clearance issues. Using the mini wrench with the extended tooling makes the tooling the same overall reach as the short version 4412. Washer style (2) p/n 44125 9.4mm, (2) p/n 44127 11mm, (2) p/n 44113 13.5mm, (2) p/n 44129 15mm, (2) p/n 44111 16.8mm, (2) p/n 44112 23mm. Taper style inserts (2) p/n 44183 10mm, (2) p/n 44185 15.7mm, (2) p/n 44186 16.8mm, (2) p/n 44187 24mm (link to kit details)
M14x1.25 Inserts are also available in aluminum click here: normally used in racing applications, where Nitromethane is used as a fuel. Steel inserts typically have a higher tensile strength than aluminum.
KIT SIZE	Part No.	INCH	METRIC	Washer seat PART NO.	INCHES	METRIC	Taper seat PART NO.
M18x1.5 note: Inserts NOT included	Kit p/n 4815	.400 .720	10.0 mm 18.3 mm	48151 48153	.400	10.0 mm	48181
KIT SIZE	Part No.	INCHES	METRIC	Washer seat PART NO.	INCHES	METRIC	Taper seat PART NO.
7/8 - 18 note: Inserts NOT included	Kit p/n 4718	.430 .780 1.000	11.0 mm 20.0 mm 25.4 mm	47181 47183 47185	----- -----	----- -----	----- -----

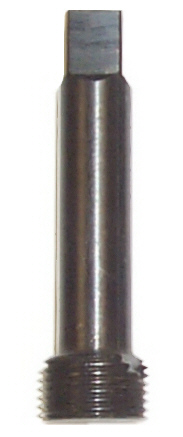

SPECIAL SEAT CUTTERS For use on some taper seat spark plug repairs that have very limited access to the spark plug hole. Cutter diameter .650 inches This tool only creates the inner countersink.		SEAT CUTTER GUIDE M14x1.25 SPARK PLUG For use when the step tap cannot be threaded deep enough through the spark plug hole to allow use of the seat cutter.	REDUCED O.D Seat Cutter M14x1.25 used in honda fit where the spark plug tube is very narrow. .750 O.D. Use Kit p/n 4412ER which includes the seat cutter for honda fit.	SEALER FOR HIGH TEMPERATURES This sealer must be used when installing taper seat inserts.	INSERT DRIVER OIL This oil is superior for installing inserts.
KIT SIZE	PART NO.	PART NO.		PART NO.	PART NO.
M14x1.25 standard	44196	44195	44193ER .750 O.D	6020	6010
M14x1.25 extended	44196E
M18x1.5	48196
SPECIAL TOOLS M14x1.25 SEAT RECONDITION KITS THESE TOOLS ARE FOR HOLES THAT DO NOT HAVE AN INSERT.				INDIVIDUAL RECONDITION CUTTERS
Tooling used to recondition washer seat or taper seat sealing surface. Note: These are not thread repair cutters they are only used to recondition a worn out or damaged seat.		P/n 4412SRW washer seat		INDIVIDUAL RECONDITION TAPER SEAT CUTTER P/n 44198 must have kit p/n 4412	INDIVIDUAL RECONDITION EXTENDED TAPER SEAT CUTTER P/n 44198E must have kit p/n 4412E
WASHER SEAT KIT P/n 4412SRW instructions	TAPER SEAT KIT P/n 4412SRT instructions			INDIVIDUAL RECONDITION WASHER SEAT CUTTER P/n 44197 must have kit p/n 4412

If you have any stripped spark plug thread repair questions regarding
spark plug blow out as in Ford spark plug blows outs. Our stripped thread repair kits
can solve your thread repair problem. read more on our spark plug Ford only thread repair page.
The 4412E kit is commonly used in Honda spark plug thread repairToyota spark plug thread repair
Bmw spark plug thread repair
