This tooling will repair spark plugs that are fully threaded or
a half threaded plugs used in Honda as in the NGK spark plugs p/n CR9EHIX-9,
IMR9B-9H or IMR9d-9h which has a straight section between the threads and washer.

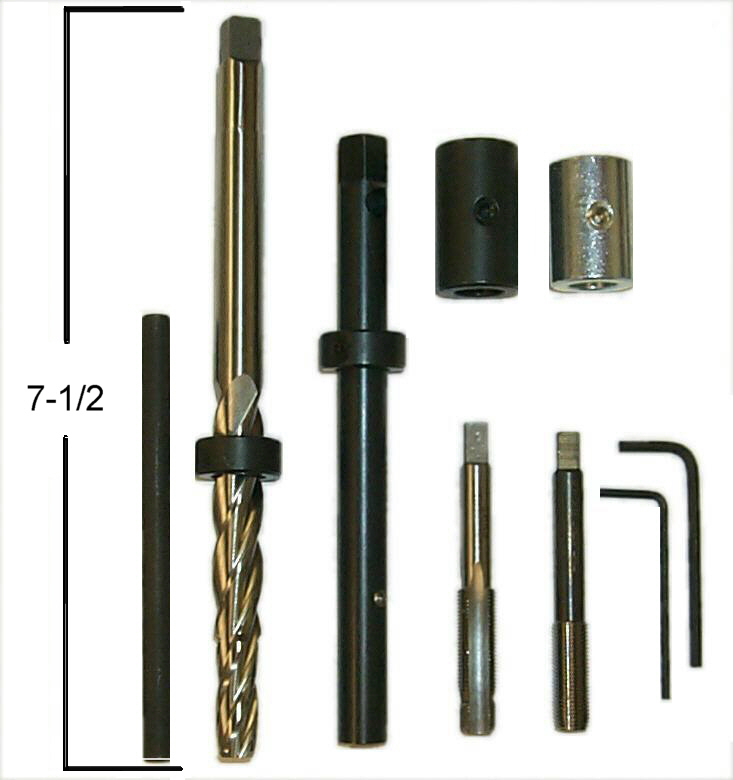

There are 2 movable collars included, the long black collar will repair full thread
spark plugs which are flush to the surface and the silver collar will create a
special countersink step required for the CR9EHIX-9 Honda style spark plugs.
Inserts not included order separately.
If repairing the CR9EHIX-9 or IMR9d9h, IMR9B-9H style plugs
that are pictured below use the 9mm length insert p/n 40101
You will use the Silver collar to create the countersink step as per the instruction.
M10x1.0 extended p/n 4010E2 includes 5 inserts p/n 40101 INSTRUCTIONS
These instructions are specific to the 4010E2 only.
We must countersink for this straight section using the silver collar and insert p/n 40101
Tooling length 7-1/2 inches or 190mm
